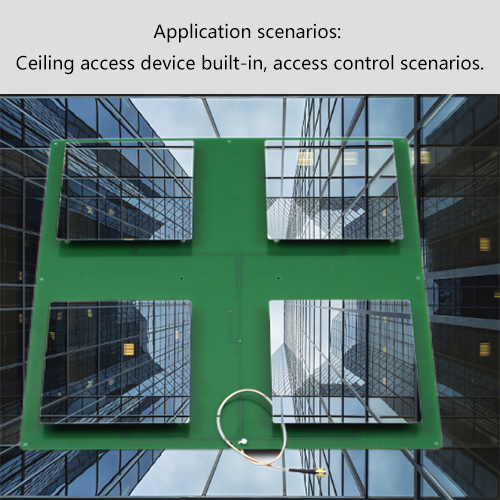

KDA40-Array narrow-wave built-in antenna（for access control）

Model

KDA40

Electrical Specifications

Frequency Range(MHz)

902-928

Gain(dBi)

12dBi

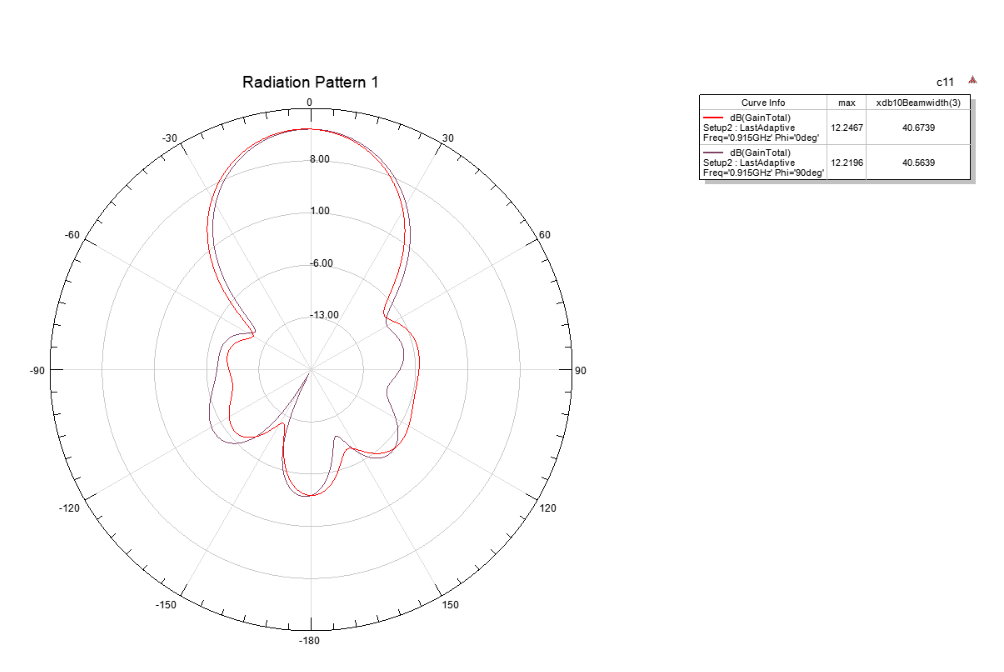

Beam Width(°)

Hor:40±2 Ver: 40±2

VSWR

≤1.3

Impedance(Ω)

50

Polarization

Circular polarization

Axial ratio(dB)

≤3

MAX.Power(W)

50

Lightning protection

DC ground

Mechanical Specifications

Connector

SMA-Female

Connector position

Lateral extraction

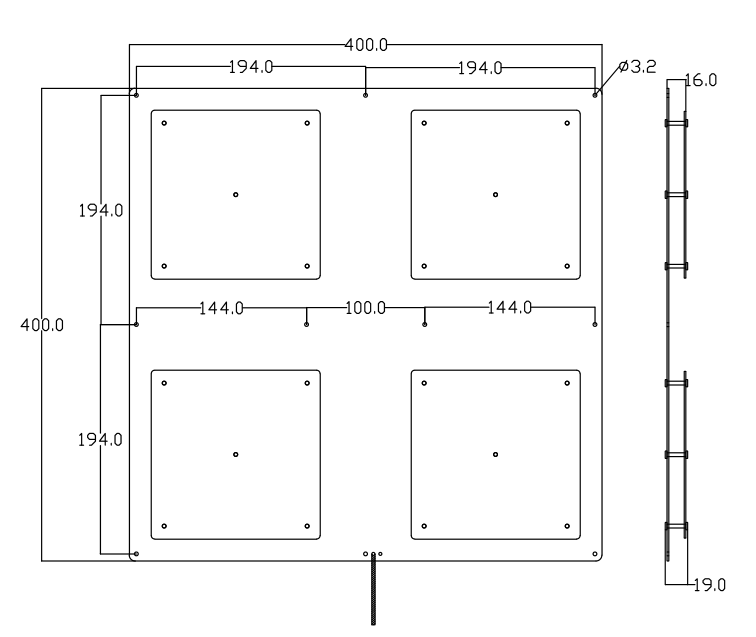

Dimension(mm)

400*400*19mm

Antenna weight(kg)

0.8

Reflector material

Aluminum

Operating temperature(℃)

-40～55
